How to adjust the step length on the software:RDworks

1.Connect the main board and the software.

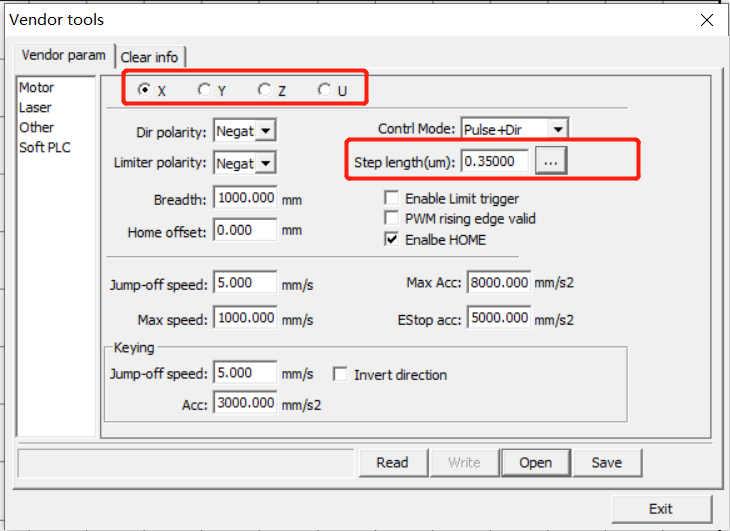

2.Click the “Flie” and the “vendor settings”.

3.Select the axis that is stuck due to the wrong step length.

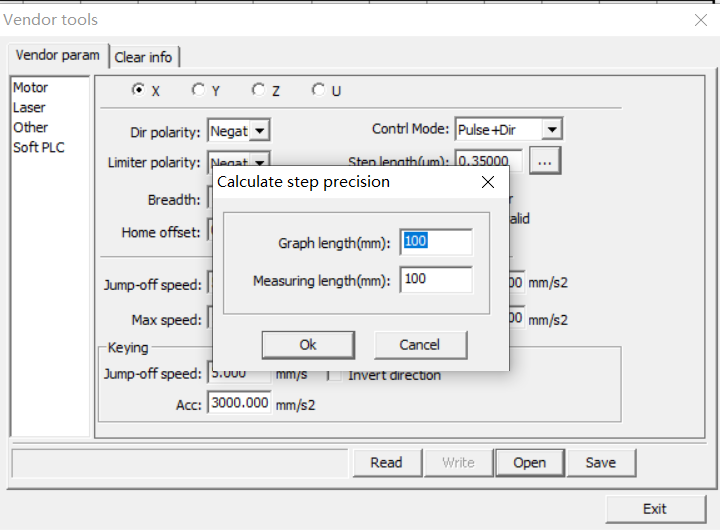

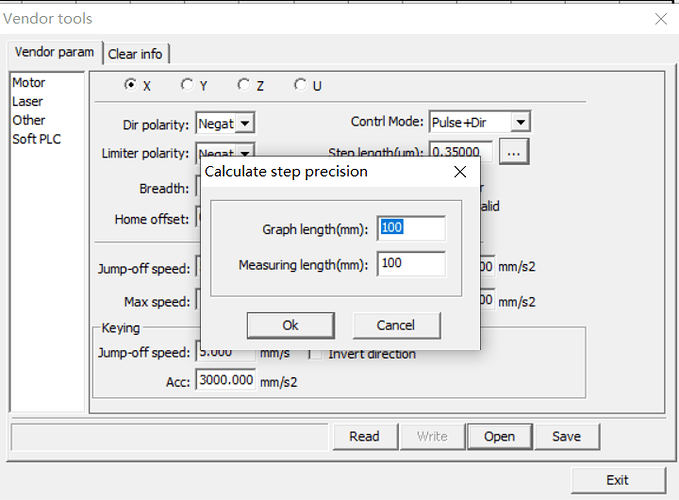

4.Cut the set graphics, such as a straight line.Measure the setting length(Graphic length) and the actual length,filling these in the software,and it will calculate the step length automatically.
