Hello together,
i have a new 60W Co2 Laser.
I removed the old M3 NANO Controller and i put in the new RDC6432G Controller.
Later i will not work with CorelDraw maybe with Lightburn.
That is why i changed the Controller.
Maybe someone have tips me to have a GETTING STARTET
For New Meber there are only possible to bring 1 Picture.
All Pictures you can see here:
Sorry, i found no other Solution for more Pictures.
It looks like, that the new controller, Driver and Laser Power Supply is working.

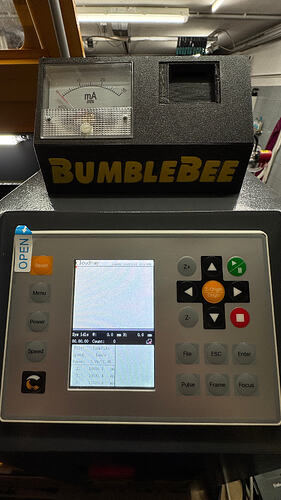

The RDC6432G is running up in English.
My native language is later german, but i see not every words are clear and understand in german.
Maybe i leave them in english.
I found inside the RDC6432G a menu there i can check the X and Y Axis LIMIT SWITCH
A grey or red Icon comes, when i press the microswitch.
What i not see is the Water protection Switch, it works, i can measure it, but no red or grey icon when i switch them with water. It is only grey.
Stepper Motor: NEMA 17 for X and Y
When i press the Buttons on the HMI RDC6432G for the 4 Directions it only moves in 2 Directions
DOWN and RIGHT
BUT
when i go to the RDWorks Software, and i press the Axis Move it moves in all 4 directions.
And here i Found also some settings under USER that i can read and maybe write.
Here are the original Screenshots with Settings from the RD Works Software.
RDWorksV8Setup8.01.68-20250701.exe
Is this the NEWEST VERSION ?
VENDOR tools:
Questions:
How does the HMI can move all 4 directions with the arrow keys?
Is the RDWorks Software RDWorksV8Setup8.01.68-20250701.exe the NEWEST Version?
What can i do in Vendor tools with Soft PLC ? What is it for a LAMP ?
How can i make it, that in the LEFT TOP Corner where the Limit Switch for X and Y are are the HOME Corner with the Coordinates 0 | 0 ?
Or is it not clever ?
How can i make HOMING when POWER ON ? My old 10W Diode Laser was moving after Power on. It was a nice feature.
Thanks for giving me Tips.
Or there are a getting Startet documentation?
Best Regards
